Circuit Capacity and Installation Requirements for a Home EV Charger

A home EV charger installation depends on electrical service size, circuit rating, wiring distance, and local code requirements. Most residential Level 2 chargers use 240V power and operate between 16 and 48 amps, with common systems delivering 7.7–11.5 kW. A 40-amp charger normally requires a 50-amp circuit, while a 48-amp unit usually needs a 60-amp circuit. A correct circuit design helps maintain charging speed, equipment reliability, and household electrical safety.

Electric vehicle charging has become a regular part of residential energy use. In 2024, global EV sales passed 17 million units, increasing demand for home charging solutions. Unlike standard household appliances that operate for short periods, EV chargers often run for several hours continuously. The National Electrical Code (NEC) treats EV charging as a continuous load, requiring circuits to be sized at 125% of the charger output. For example, a 32-amp charger should be installed on a circuit rated for at least 40 amps.

A home charging system must match the vehicle’s charging capability with the electrical capacity available at the property.

The first step before installation is checking the home’s electrical service rating. Many modern houses use 200-amp electrical panels, which can often support a Level 2 charger after a load calculation. Older properties may have 100-amp services, where available capacity depends on existing equipment such as electric heating, air conditioning, water heaters, and kitchen appliances.

A typical electrical assessment includes:

Item	Common Residential Range
Service panel capacity	100–400 amps
EV charger voltage	240 volts
Charger output	16–80 amps
Common Level 2 charging power	7.7–11.5 kW
Recommended continuous load calculation	125% of rated charging current

The available panel capacity determines the charger size that can be installed without modifying the electrical system. A 2023 analysis of residential charging patterns found that most drivers can meet daily transportation needs with overnight charging because average daily mileage is much lower than the available charging range from a Level 2 system.

The circuit rating must match the charger output. A charger does not automatically operate at its maximum speed unless the circuit, wiring, breaker, and vehicle all support that level. For example, a 60-amp circuit with a 48-amp EV charger can provide around 11.5 kW, while a 30-amp circuit limits the same charger to a lower output.

EV Charger Current	Required Circuit Size	Approximate Power
16 amps	20 amps	3.8 kW
32 amps	40 amps	7.7 kW
40 amps	50 amps	9.6 kW
48 amps	60 amps	11.5 kW
80 amps	100 amps	19.2 kW

The circuit rating also affects charging time. A vehicle with a 75 kWh battery may require around 8–10 hours to charge from a low state using a 9.6 kW charger. A smaller 7.7 kW system may extend charging time by approximately 20%, while a higher-power charger can reduce overnight charging periods.

Wire selection is another important part of installation planning. The conductor size depends on amperage, cable length, installation method, and local electrical requirements. Many 50-amp residential EV circuits use 6 AWG copper wiring, although exact specifications vary depending on temperature ratings and installation conditions.

Long cable distances between the electrical panel and garage can increase installation costs. A charger installed 10 feet from the panel may require minimal wiring, while a garage located 75–100 feet away may need additional conduit and larger conductors. Maintaining voltage drop below approximately 3% is commonly recommended for residential branch circuits to avoid reduced charging performance.

Proper wire sizing allows the charger to deliver stable power during long charging sessions.

The breaker is selected according to the charger’s continuous current requirement. A 40-amp charger usually uses a 50-amp breaker, while a 48-amp charger typically uses a 60-amp breaker. Many newer EV chargers include integrated protection features, but installation must still comply with electrical codes.

Ground fault protection is another consideration. Since 2020, updated electrical standards have increased protection requirements for many EV charging installations. Outdoor charging equipment also requires weather-resistant construction, suitable enclosure ratings, and protection from moisture and physical damage.

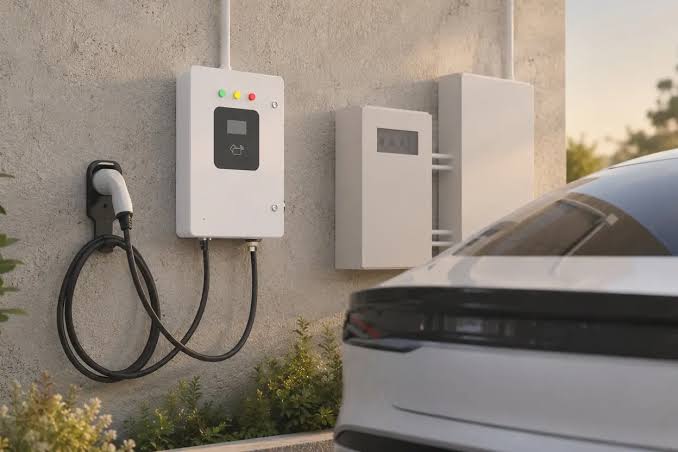

Installation location affects both cost and complexity. A charger placed inside an attached garage usually requires less work than a unit installed on an exterior wall or detached garage. Typical residential installations in the United States range from approximately $500 for simple setups to more than $3,000 when panel upgrades, trenching, or long wiring routes are required.

A comparison of available equipment should include charging speed, circuit requirements, connectivity features, and compatibility with vehicles. Consumers researching options through a best home EV charger comparison often compare 32-amp, 40-amp, and 48-amp models because these ranges fit most residential electrical systems.

Smart chargers have become more common because they allow scheduled charging, energy monitoring, and utility program participation. In regions with time-of-use electricity pricing, charging during lower-cost periods can reduce monthly electricity expenses. A 2022 utility study involving thousands of residential EV users showed that managed charging programs could shift a large portion of charging demand away from evening peak periods.

Load management systems provide another option for homes with limited electrical capacity. Instead of increasing the entire service size, these systems measure household electricity use and adjust EV charging output when other appliances are operating. For example, a charger may reduce from 48 amps to 24 amps when a large electric appliance starts running.

Smart load management allows more households to install EV chargers without replacing existing electrical equipment.

Permits and inspections are commonly required for new EV charging circuits. Electrical inspectors typically review breaker compatibility, grounding, conductor size, conduit installation, and equipment placement. Requirements vary by municipality, but professional installation helps ensure the system follows local standards.

Climate conditions also affect charger selection. Outdoor chargers installed in areas with freezing winters may require equipment rated for low temperatures, while hot climates may require units designed for higher operating temperatures. Many residential chargers are rated for operation between approximately -30°C and 50°C, depending on the model.

Future charging needs should also be considered during installation. Battery sizes have increased over recent years, with many EVs now using packs above 70 kWh. Installing a larger conduit pathway or selecting a charger with adjustable output can make future upgrades easier. However, installing the highest amperage charger is not always necessary because many drivers recover daily energy use during overnight charging.

The most suitable home EV charger installation balances available electrical capacity, daily driving distance, charging speed, and installation cost. A properly sized 240V circuit with appropriate wiring and protection can provide reliable charging performance for many years while supporting the growing use of electric vehicles in residential settings.
